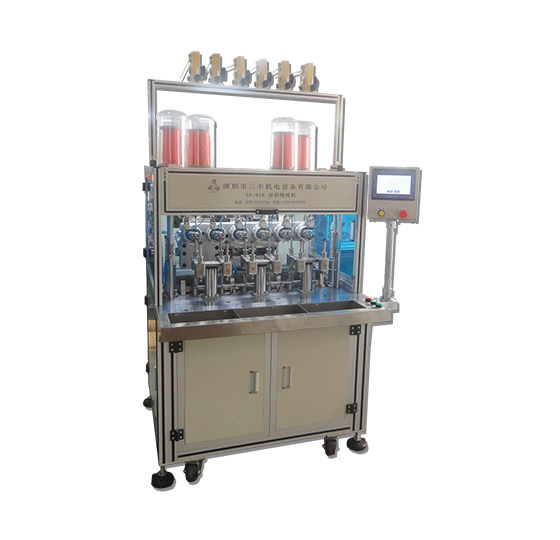

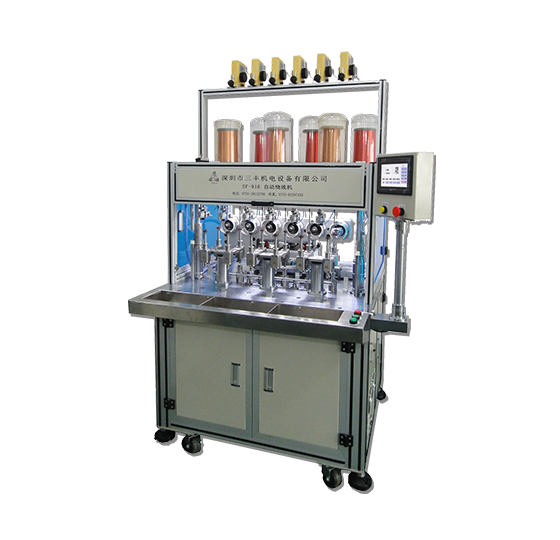

>> Automatic winding machince

Automatic winding machince

SF-916

1. The driving system of CNC 5 axles AC servo motor with a precise positioning;
2. The materials entering is automatically exchanged by double-direction turn plate to improve the production capacity;
3. The winding axle adopts 1.5KW servo motor with a feature of high torque;
4. The jig adopts the design of fast alternate mode;
5. With the functions of automatically wire-tidying and wasted wires excluding without redundant wires remaining;

6. Easy man-machine interface control, easy operation.

0755-2813 2790

_TEXT_PRODUCT_003_TEXT_PRODUCT_002

Control mode	CNC 5 axis and AC servo motor synchronous control
Fly fork quantity	Six connecting axles,distance is 120mm
Fly fork rotating speed	Max 5,500 rpm,either positive or negative is OK
Rotating polar Angle	360 degrees as a circle,and the setting unit is 1 degree
Fly fork precision	+/- degree
Guide pin displace	Shaft X(front and back)80mm,and the precision is 0.01mm Shaft Y(left and right)80mm,and the precision is 0.01mm Shaft Z(up and down)40mm,and the precision is 0.01mm
Torque	4.77N·m

Applicable wire diameter	Φ0.03-Φ0.21 mm

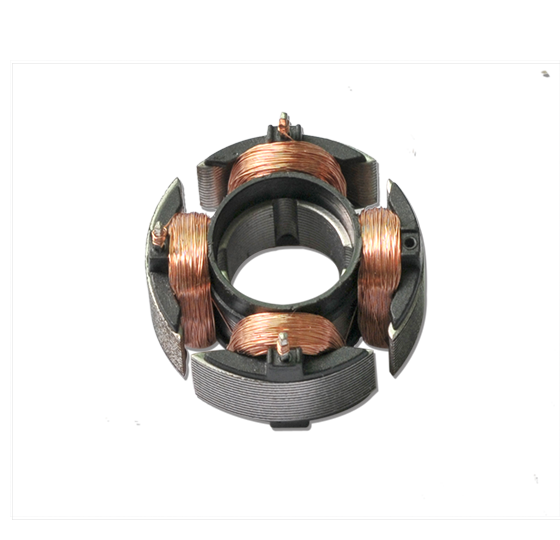

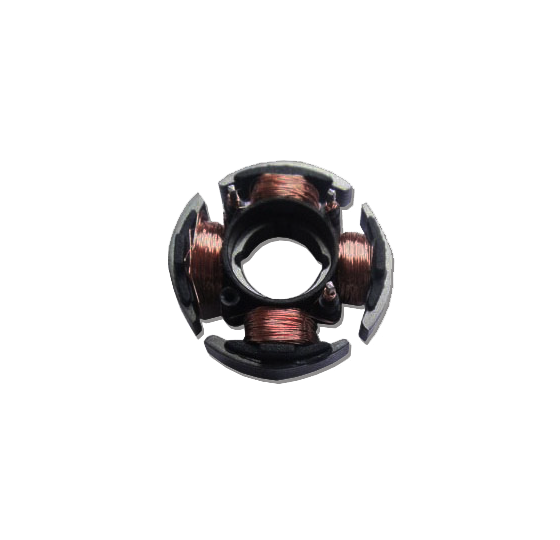

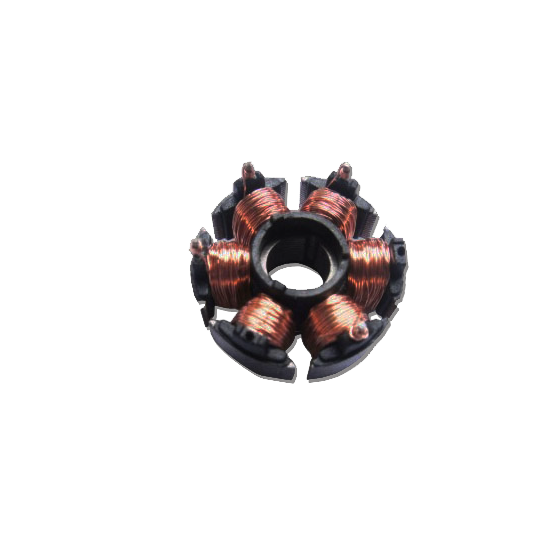

Stator outer diameter	Φ12-Φ42mm
Stator height	3-15mm
Winding head quantity	Six pcs
Winding speed	Max.100 circles/min
Input power source	Single phase 220v,50hz
Power	5KW
Input air pressure	4-6kgf/cm²
Dimension	1000(L) x 1000(W) x 1900(H)mm
Device weight	Approximately 490Kg
